We show the problem using simulated data N3finemapping in susieR package.

We observed in a summary statistics setting where we get summary stats from full data but later put a smaller n for sample size into the computation. Then the ``good’’ result (also from good initialization) did not give the largest elbo. Rather a bad result (from a random initialization) did.

library(susieR)
data(N3finemapping)
attach(N3finemapping)
b <- data$true_coef[,1]

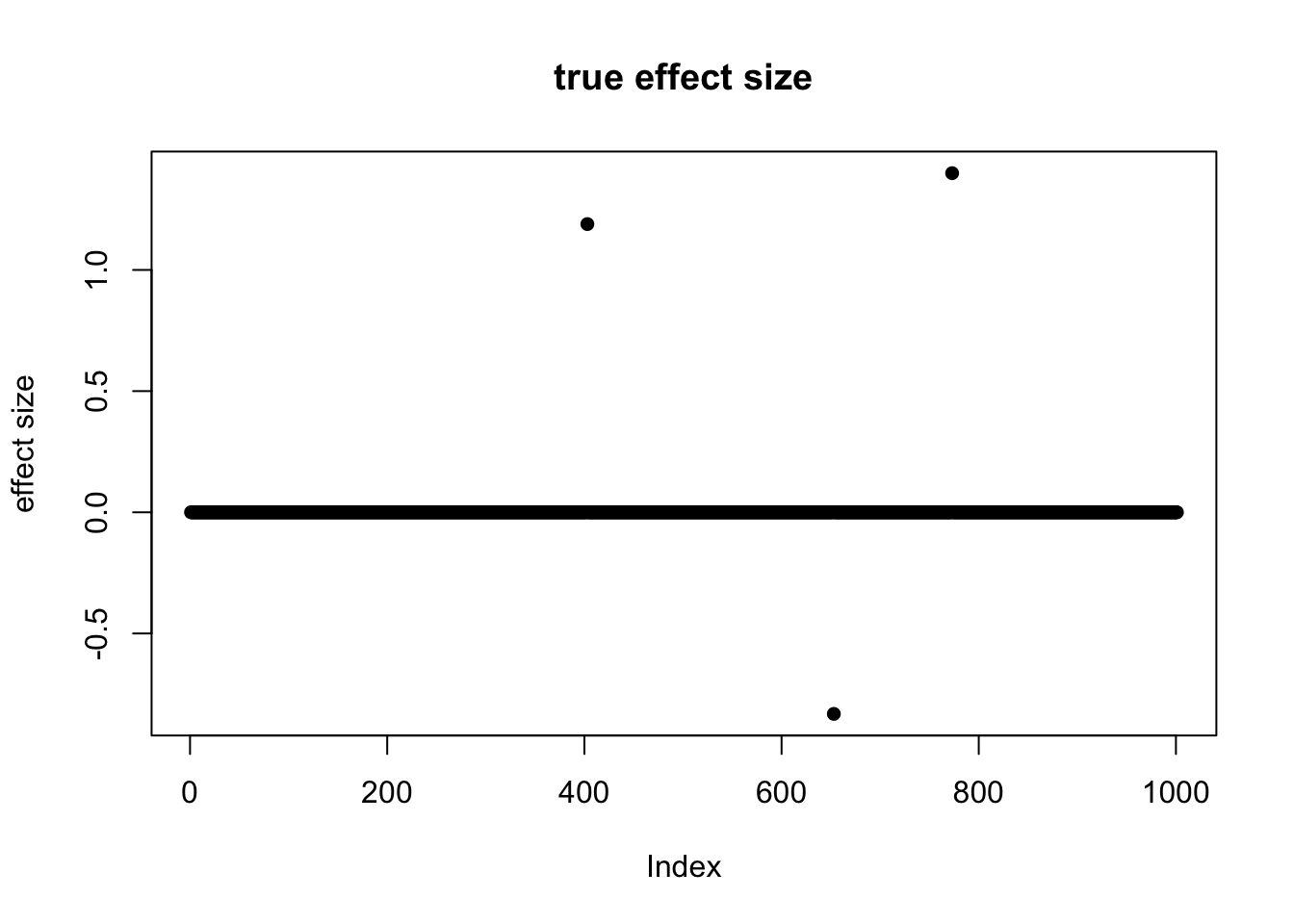

plot(b, pch=16, ylab='effect size', main='true effect size')

Expand here to see past versions of unnamed-chunk-1-1.png:
Version Author Date
f6c387c zouyuxin 2018-11-03

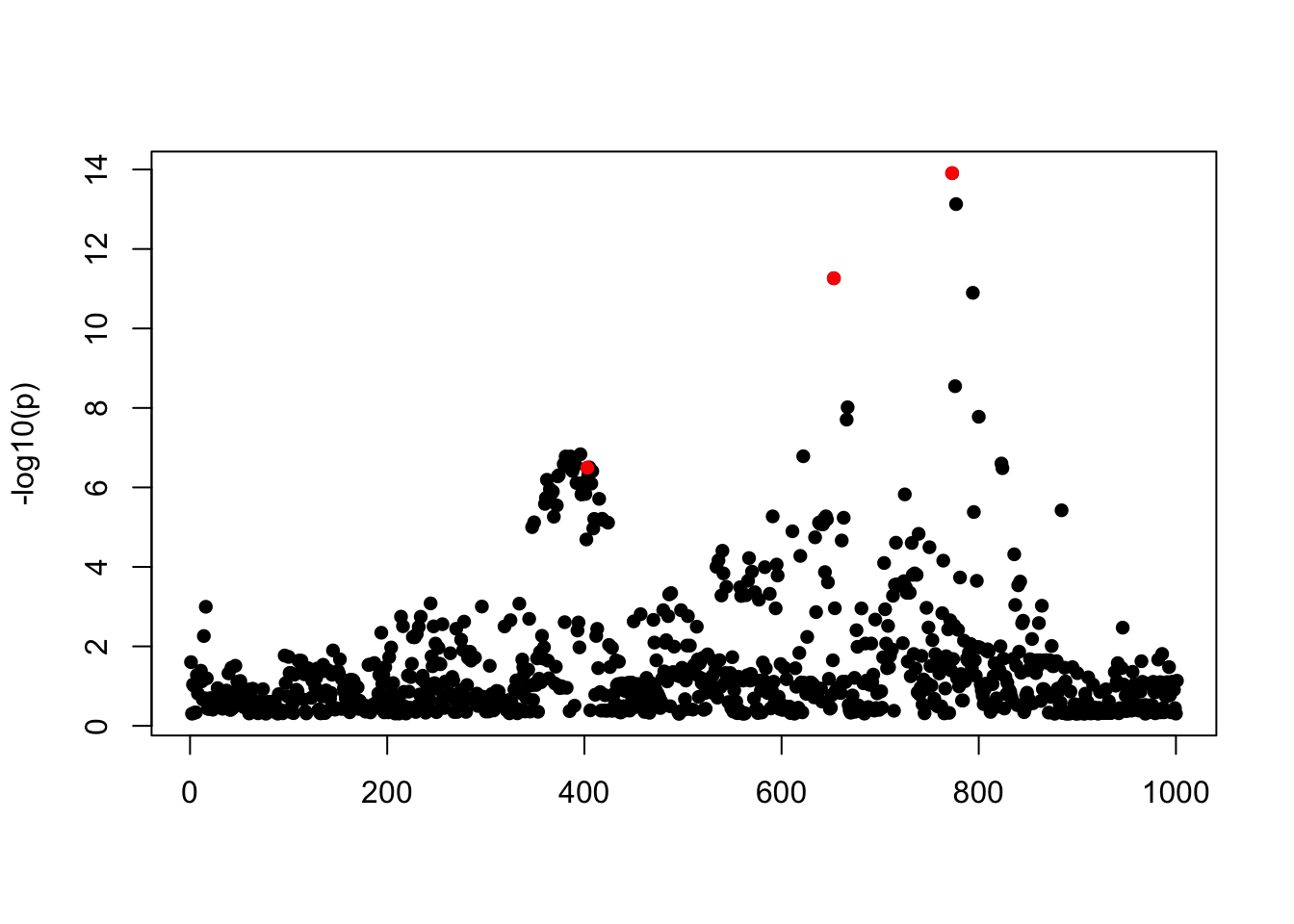

The summary statistics come from per-variable univariate simple regression. The results are \(\hat{\beta}\) and \(SE(\hat{\beta})\) from which the p-values (from t-distribution) and \(z\)-scores can be derived.

p_values = 2 * pt(-abs(sumstats[1,,1] / sumstats[2,,1]), df = nrow(data$X) - 2)
z_scores = abs(qnorm(p_values/2)) * sign(sumstats[1,,1])
susie_plot(z_scores, y = "z", b=b)

Expand here to see past versions of unnamed-chunk-2-1.png:
Version Author Date
f6c387c zouyuxin 2018-11-03

For this example the correlation matrix can be computed directly from data provide,

R <- cor(data$X)

The susie_z function converts the z scores to t statistics based on the provided sample size, n.

Correct sample size

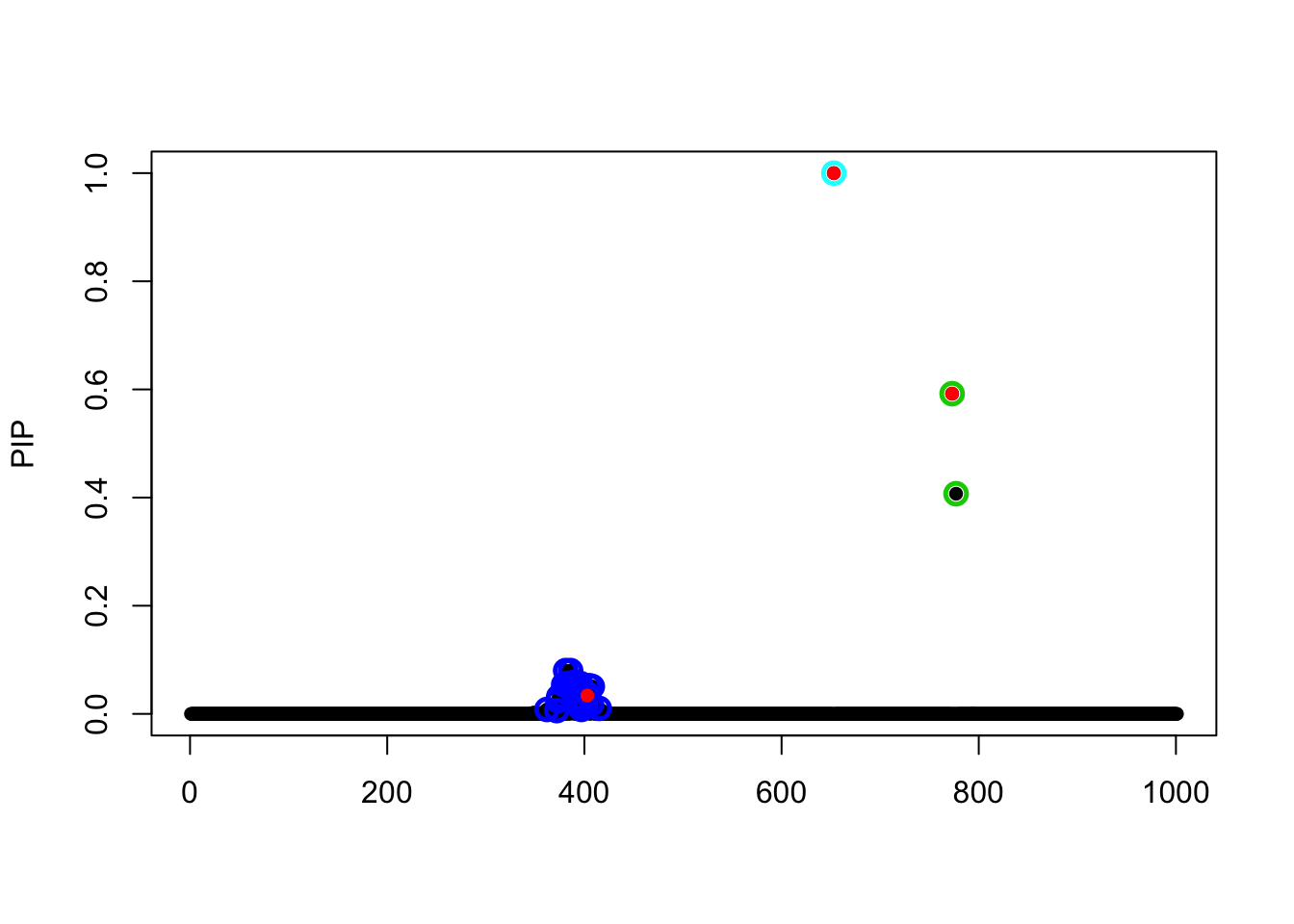

The model with the correct sample size is:

fitted = susie_z(z = z_scores, R = R, n = nrow(data$X), L =10,
                 scaled_prior_variance = 0.1, estimate_residual_variance = TRUE)
susie_plot(fitted, y='PIP', b=b)

Expand here to see past versions of unnamed-chunk-4-1.png:
Version Author Date
f6c387c zouyuxin 2018-11-03

The elbo is -790.0413521.

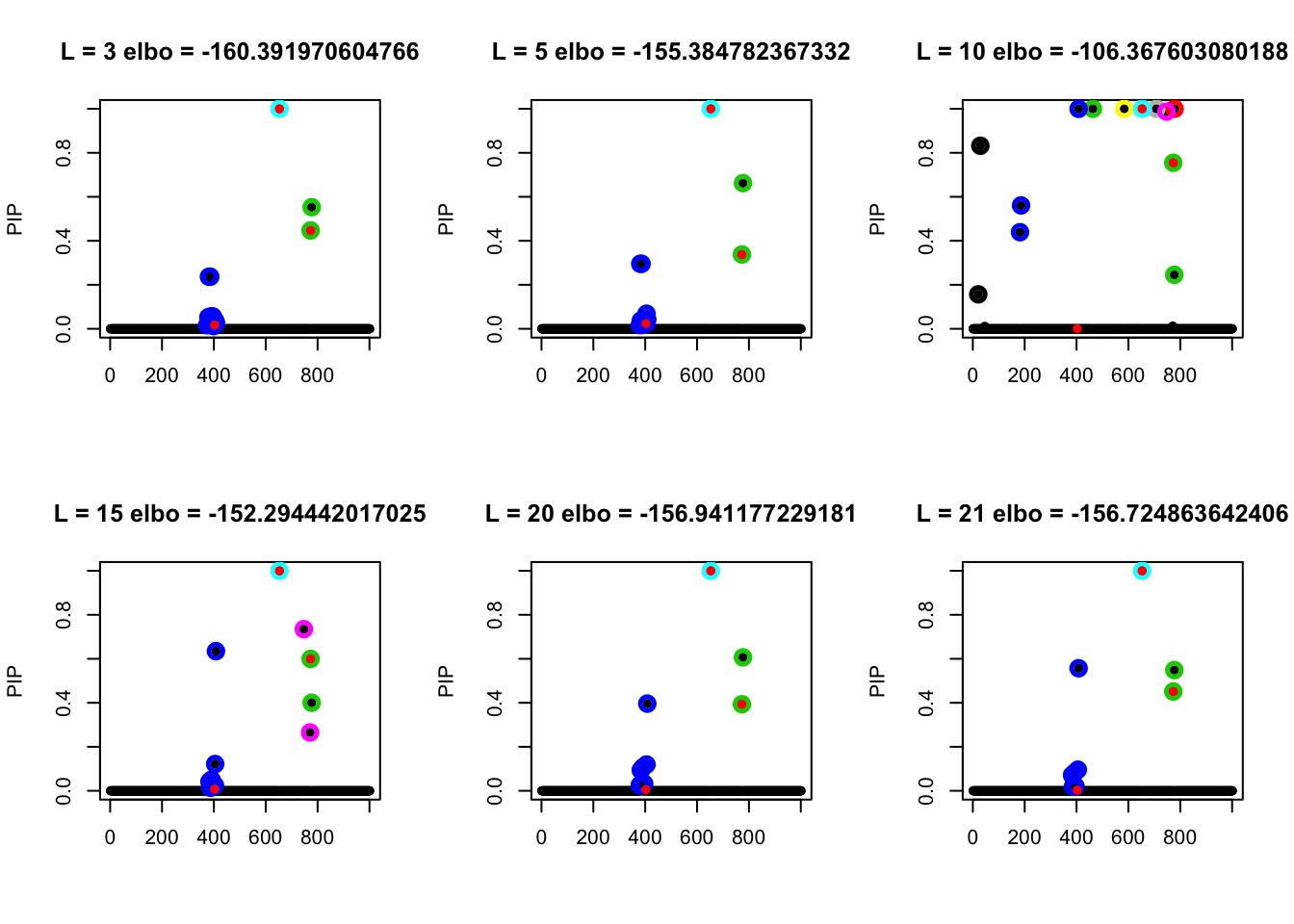

Small sample size n=150 with different L

par(mfrow=c(2,3))
Ls = c(3, 5, 10, 15, 20, 21)
for(l in Ls){
  fitted_n = susie_z(z = z_scores, R = R, n = 150, L=l,
                 scaled_prior_variance = 0.1, estimate_residual_variance = TRUE)
  susie_plot(fitted_n, y='PIP', b=b, main = paste0('L = ', l, ' elbo = ',
                                                   susie_get_objective(fitted_n)))
}

Expand here to see past versions of unnamed-chunk-5-1.png:
Version Author Date
f6c387c zouyuxin 2018-11-03

par(mfrow=c(1,1))

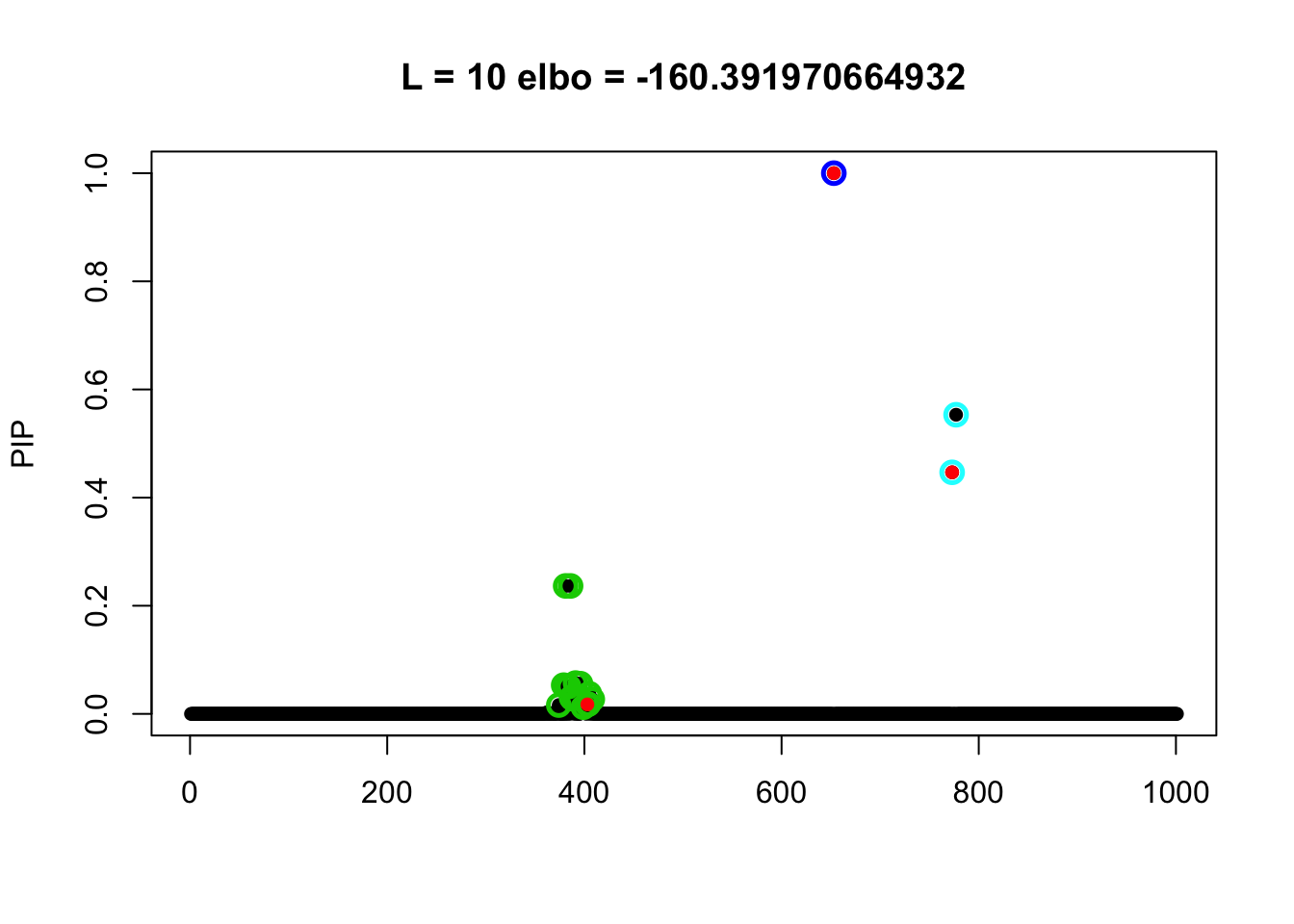

If we set the initial as the truth:

s.init = susie_init_coef(which(b!=0), b[which(b!=0)], ncol(data$X))
fitted_z <- susie_z(z = z_scores,
                    R = R, n = 150, L = 10,
                    scaled_prior_variance = 0.1, s_init=s.init,
                    estimate_residual_variance = TRUE)
susie_plot(fitted_z, y="PIP", b=b, main = paste0('L = 10 elbo = ',
                                                   susie_get_objective(fitted_z)))

Expand here to see past versions of unnamed-chunk-6-1.png:
Version Author Date
f6c387c zouyuxin 2018-11-03

The model with the good initialization has lower objective than the model with a random initialization.
