Cov Block

Last updated: 2019-01-10

• ✔ R Markdown file: up-to-date

  Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

• ✔ Environment: empty

  Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

• ✔ Seed: set.seed(20180529)

  The command set.seed(20180529) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

• ✔ Session information: recorded

  Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

• ✔ Repository version: df40371

  Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.

  Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:


  Ignored files:
      Ignored:    .DS_Store
      Ignored:    .Rhistory
      Ignored:    .Rproj.user/
      Ignored:    analysis/.Rhistory
      Ignored:    docs/.DS_Store
      Ignored:    docs/figure/Test.Rmd/

  Untracked files:
      Untracked:  analysis/MASH_est_Cor.Rmd
      Untracked:  analysis/MashEstCorProblem.Rmd
      Untracked:  analysis/MashMedian.Rmd
      Untracked:  analysis/mashMean.Rmd
      Untracked:  code/EstCorV.R
      Untracked:  docs/Estimate_Null_Cor_New.pdf
      Untracked:  docs/Estimate_Null_Cor_Old.pdf
      Untracked:  output/MASH.result.1.rds
      Untracked:  output/MASH.result.10.rds
      Untracked:  output/MASH.result.2.rds
      Untracked:  output/MASH.result.3.rds
      Untracked:  output/MASH.result.4.rds
      Untracked:  output/MASH.result.5.rds
      Untracked:  output/MASH.result.6.rds
      Untracked:  output/MASH.result.7.rds
      Untracked:  output/MASH.result.8.rds
      Untracked:  output/MASH.result.9.rds

  Unstaged changes:
      Modified:   analysis/susieProblem2.Rmd



  Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

library(mashr)

Loading required package: ashr

library(magic)

Loading required package: abind

library(mvtnorm)
library(knitr)
library(kableExtra)

ROC.table = function(data, model){
  sign.test = data*model$result$PosteriorMean
  thresh.seq = seq(0, 1, by=0.005)[-1]
  m.seq = matrix(0,length(thresh.seq), 2)
  colnames(m.seq) = c('TPR', 'FPR')
  for(t in 1:length(thresh.seq)){
    m.seq[t,] = c(sum(sign.test>0 & model$result$lfsr <= thresh.seq[t])/sum(data!=0),
                  sum(data==0 & model$result$lfsr <=thresh.seq[t])/sum(data==0))
  }
  return(m.seq)
}

V1 = matrix(0.75, 20,20)
diag(V1) = 1

V2 = matrix(0.75, 30,30)
diag(V2) = 1

V = adiag(V1, V2)

set.seed(1)
n = 10000
B1 = matrix(0, n/2, 50)
effect = rnorm(n/2)
B2 = matrix(effect, n/2, 50)
B = rbind(B1, B2)

Ehat = rmvnorm(n, sigma = V)

Bhat = B + Ehat

data = mash_set_data(Bhat = Bhat, Shat = 1)
U.c = cov_canonical(data)
m.1by1 = mash_1by1(data)
strong = get_significant_results(m.1by1)
U.pca = cov_pca(data, 3, subset = strong)
U.ed = cov_ed(data, U.pca, subset = strong)

V.simple = estimate_null_correlation_simple(data)
data.simple = mash_update_data(data, V = V.simple)
m.simple = mash(data.simple, c(U.c, U.ed))

 - Computing 10000 x 945 likelihood matrix.
 - Likelihood calculations took 17.50 seconds.
 - Fitting model with 945 mixture components.
 - Model fitting took 93.12 seconds.
 - Computing posterior matrices.
 - Computation allocated took 0.90 seconds.

V.current = estimate_null_correlation(data, c(U.c, U.ed))
m.current = V.current$mash.model

data.true = mash_update_data(data, V = V)
m.true = mash(data.true, c(U.c, U.ed))

 - Computing 10000 x 945 likelihood matrix.
 - Likelihood calculations took 22.17 seconds.
 - Fitting model with 945 mixture components.
 - Model fitting took 123.75 seconds.
 - Computing posterior matrices.
 - Computation allocated took 1.81 seconds.

corrplot::corrplot(V.simple, method='color', type='upper', tl.col="black", tl.srt=45, tl.cex = 0.5, diag = TRUE, col=colorRampPalette(c("blue", "white", "red"))(200), cl.lim = c(-1,1), title = 'Simple', mar=c(0,0,5,0))

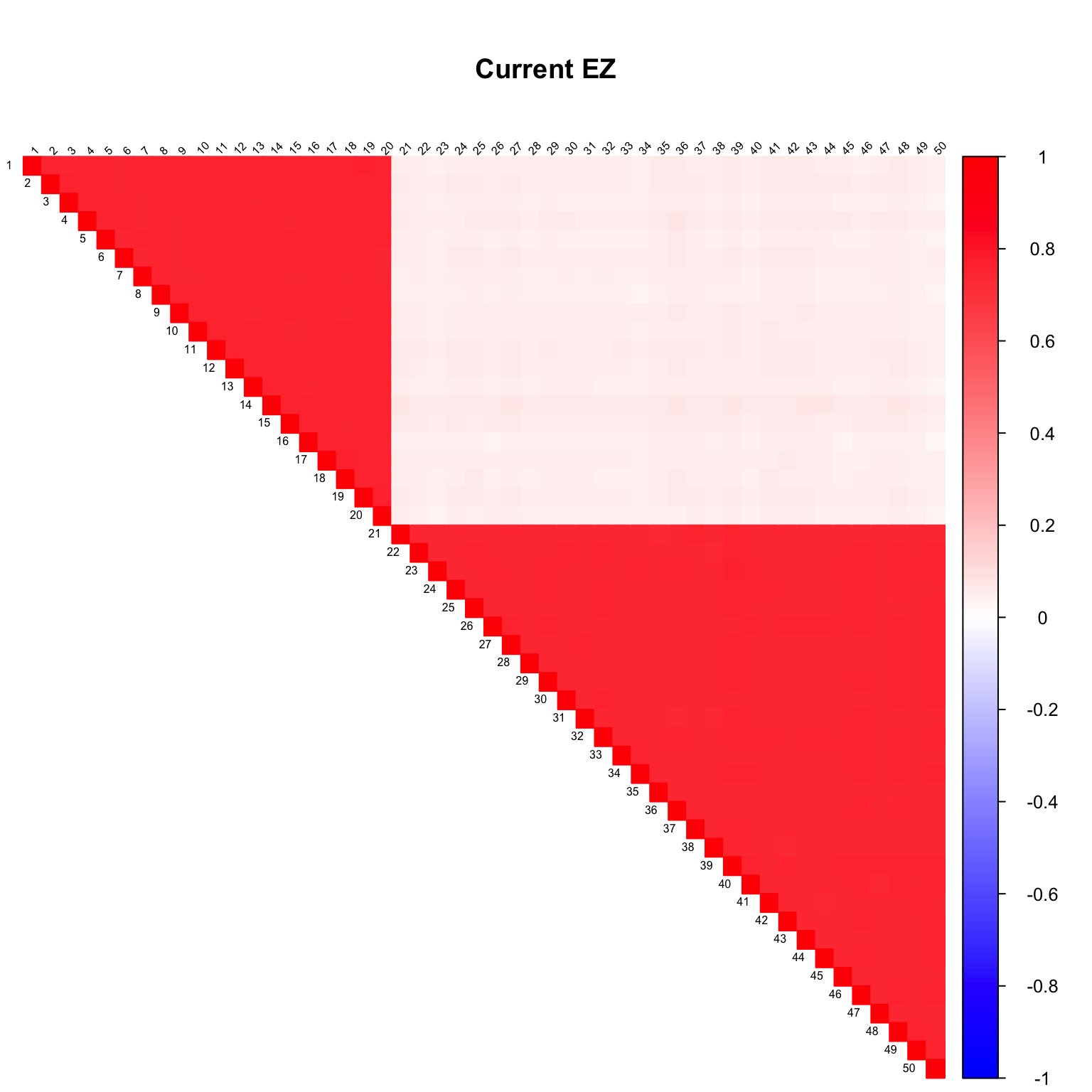

corrplot::corrplot(V.current$V, method='color', type='upper', tl.col="black", tl.srt=45, tl.cex = 0.5, diag = TRUE, col=colorRampPalette(c("blue", "white", "red"))(200), cl.lim = c(-1,1), title = 'Current EZ', mar=c(0,0,5,0))

loglike = c(get_loglik(m.simple), get_loglik(m.current), get_loglik(m.true))
sig = c(length(get_significant_results(m.simple)), length(get_significant_results(m.current)), length(get_significant_results(m.true)))
fd = c(sum(get_significant_results(m.simple)<=5000), sum(get_significant_results(m.current)<=5000), sum(get_significant_results(m.true)<=5000))
rrmse = c(sqrt(mean((B - m.simple$result$PosteriorMean)^2)/mean((B - Bhat)^2)),
          sqrt(mean((B - m.current$result$PosteriorMean)^2)/mean((B - Bhat)^2)),
          sqrt(mean((B - m.true$result$PosteriorMean)^2)/mean((B - Bhat)^2)))
tmp = cbind(loglike, sig, fd, rrmse)
colnames(tmp) = c('logliklihood', '#sig', 'false pos','RRMSE')
rownames(tmp) = c('simple', 'current', 'true')
tmp %>% kable() %>% kable_styling()

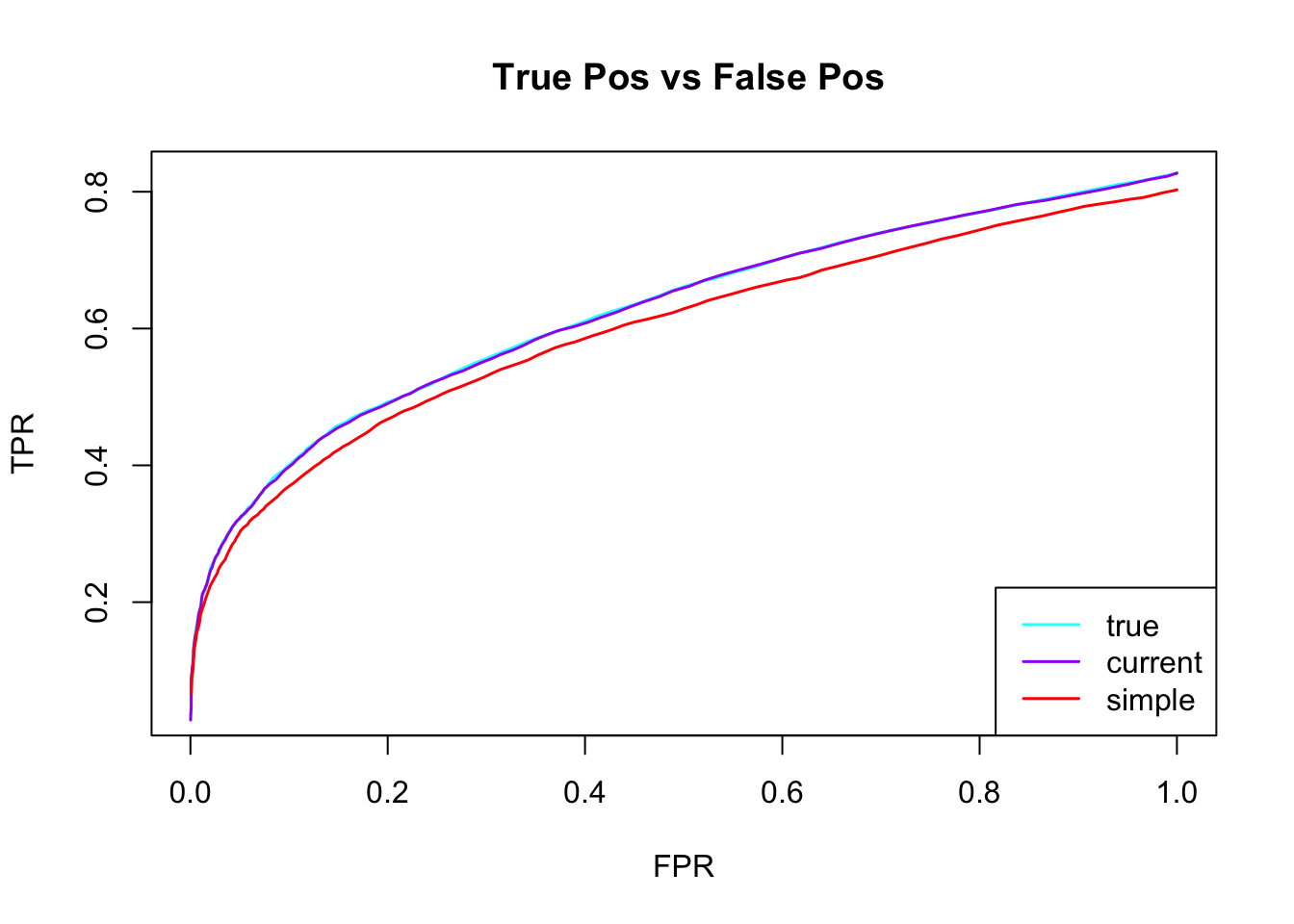

roc.seq = ROC.table(B, m.true)
plot(roc.seq[,'FPR'], roc.seq[,'TPR'], type='l', xlab = 'FPR', ylab='TPR',
       main=paste0(' True Pos vs False Pos'), cex=1.5, lwd = 1.5, col = 'cyan')
roc.seq = ROC.table(B, m.current)
lines(roc.seq[,'FPR'], roc.seq[,'TPR'], col='purple', lwd = 1.5)
roc.seq = ROC.table(B, m.simple)
lines(roc.seq[,'FPR'], roc.seq[,'TPR'], col='red', lwd = 1.5)
legend('bottomright', c('true','current', 'simple'), col=c('cyan','purple', 'red'),
           lty=c(1,1,1), lwd=c(1.5,1.5, 1.5))

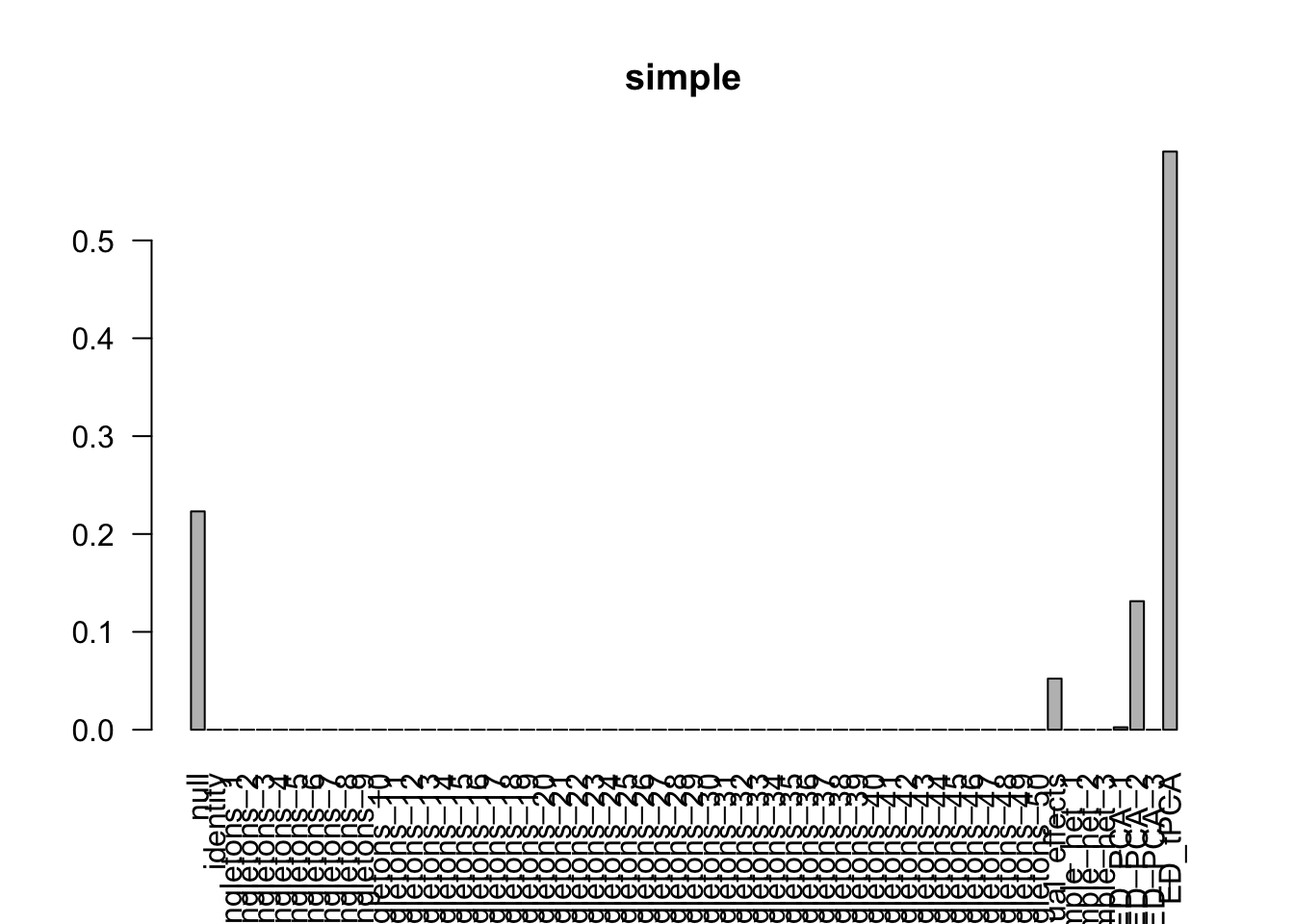

barplot(get_estimated_pi(m.simple), las=2, main='simple')

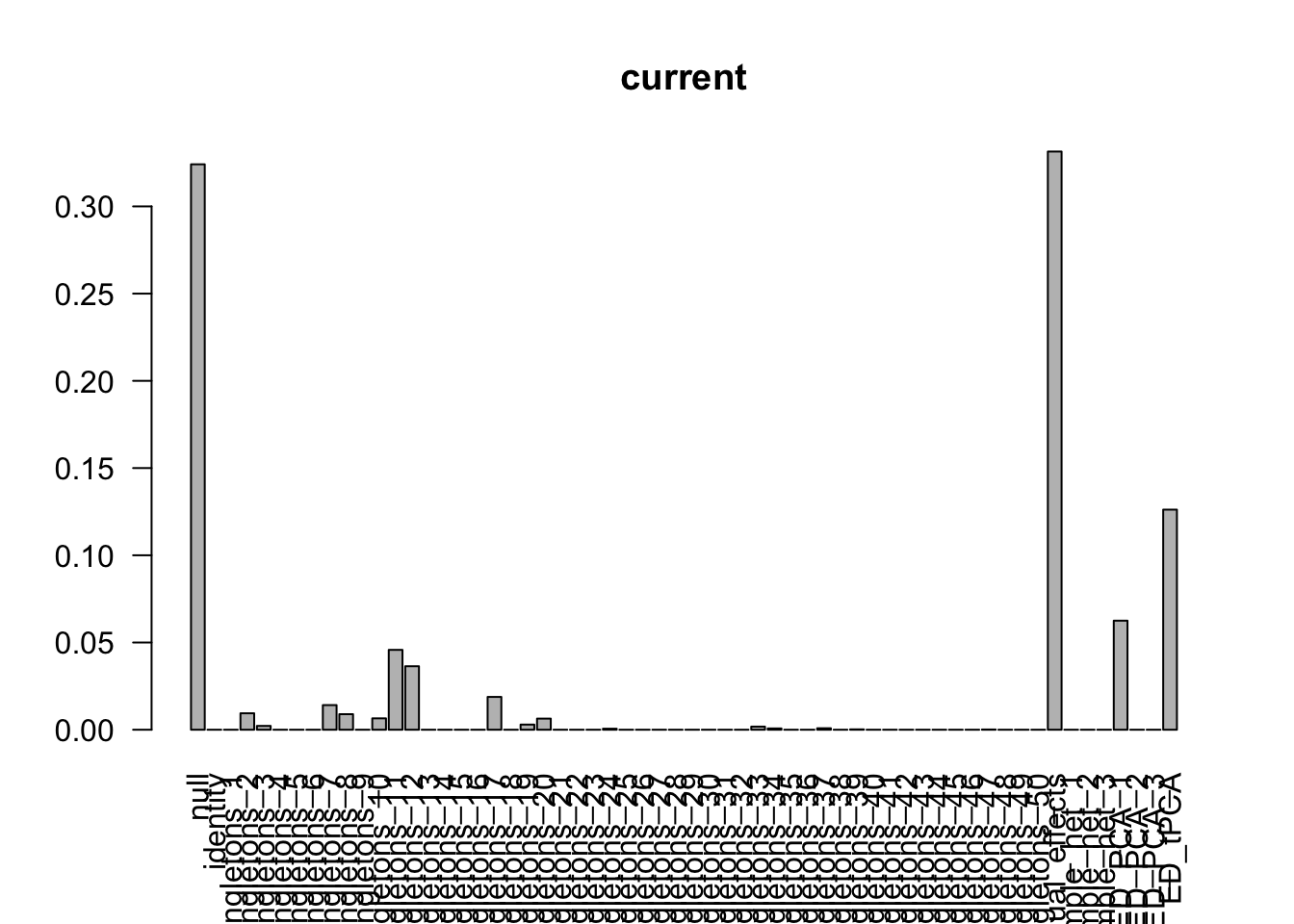

barplot(get_estimated_pi(m.current), las=2, main='current')

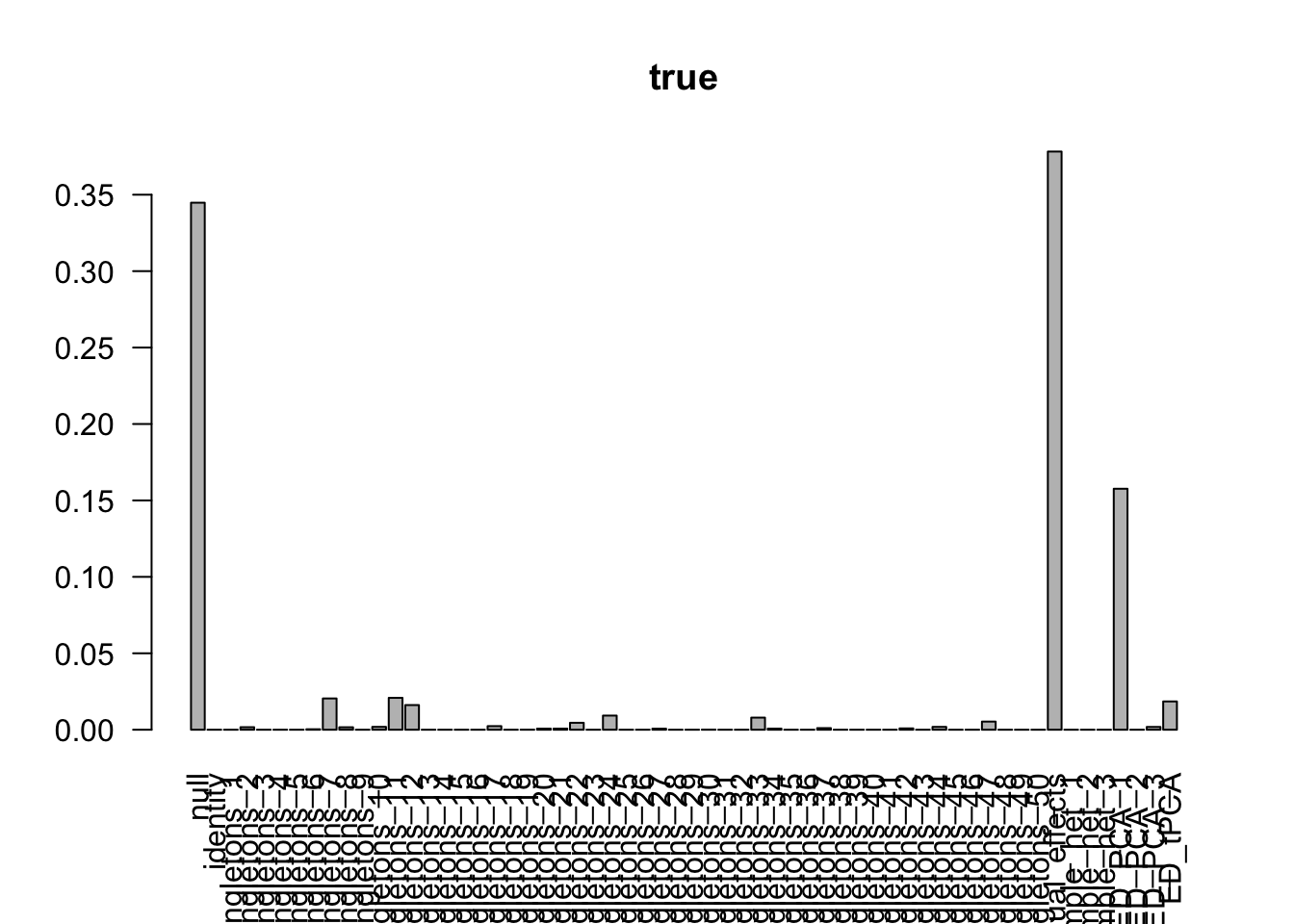

barplot(get_estimated_pi(m.true), las=2, main='true')

sessionInfo()

R version 3.5.1 (2018-07-02)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS  10.14.2

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] kableExtra_0.9.0  knitr_1.20        mvtnorm_1.0-8     magic_1.5-9
[5] abind_1.4-5       mashr_0.2.19.0555 ashr_2.2-26

loaded via a namespace (and not attached):
 [1] corrplot_0.84     lattice_0.20-35   colorspace_1.3-2
 [4] htmltools_0.3.6   viridisLite_0.3.0 yaml_2.2.0
 [7] rlang_0.3.0.1     R.oo_1.22.0       mixsqp_0.1-93
[10] pillar_1.3.1      R.utils_2.7.0     foreach_1.4.4
[13] plyr_1.8.4        stringr_1.3.1     munsell_0.5.0
[16] workflowr_1.1.1   rvest_0.3.2       R.methodsS3_1.7.1
[19] codetools_0.2-15  evaluate_0.12     pscl_1.5.2
[22] doParallel_1.0.14 parallel_3.5.1    highr_0.7
[25] Rcpp_1.0.0        readr_1.1.1       backports_1.1.2
[28] scales_1.0.0      rmeta_3.0         truncnorm_1.0-8
[31] hms_0.4.2         digest_0.6.18     stringi_1.2.4
[34] grid_3.5.1        rprojroot_1.3-2   tools_3.5.1
[37] magrittr_1.5      tibble_1.4.2      crayon_1.3.4
[40] whisker_0.3-2     pkgconfig_2.0.2   MASS_7.3-50
[43] Matrix_1.2-14     SQUAREM_2017.10-1 xml2_1.2.0
[46] assertthat_0.2.0  rmarkdown_1.10    httr_1.3.1
[49] rstudioapi_0.8    iterators_1.0.10  R6_2.3.0
[52] git2r_0.23.0      compiler_3.5.1

This reproducible R Markdown analysis was created with workflowr 1.1.1
